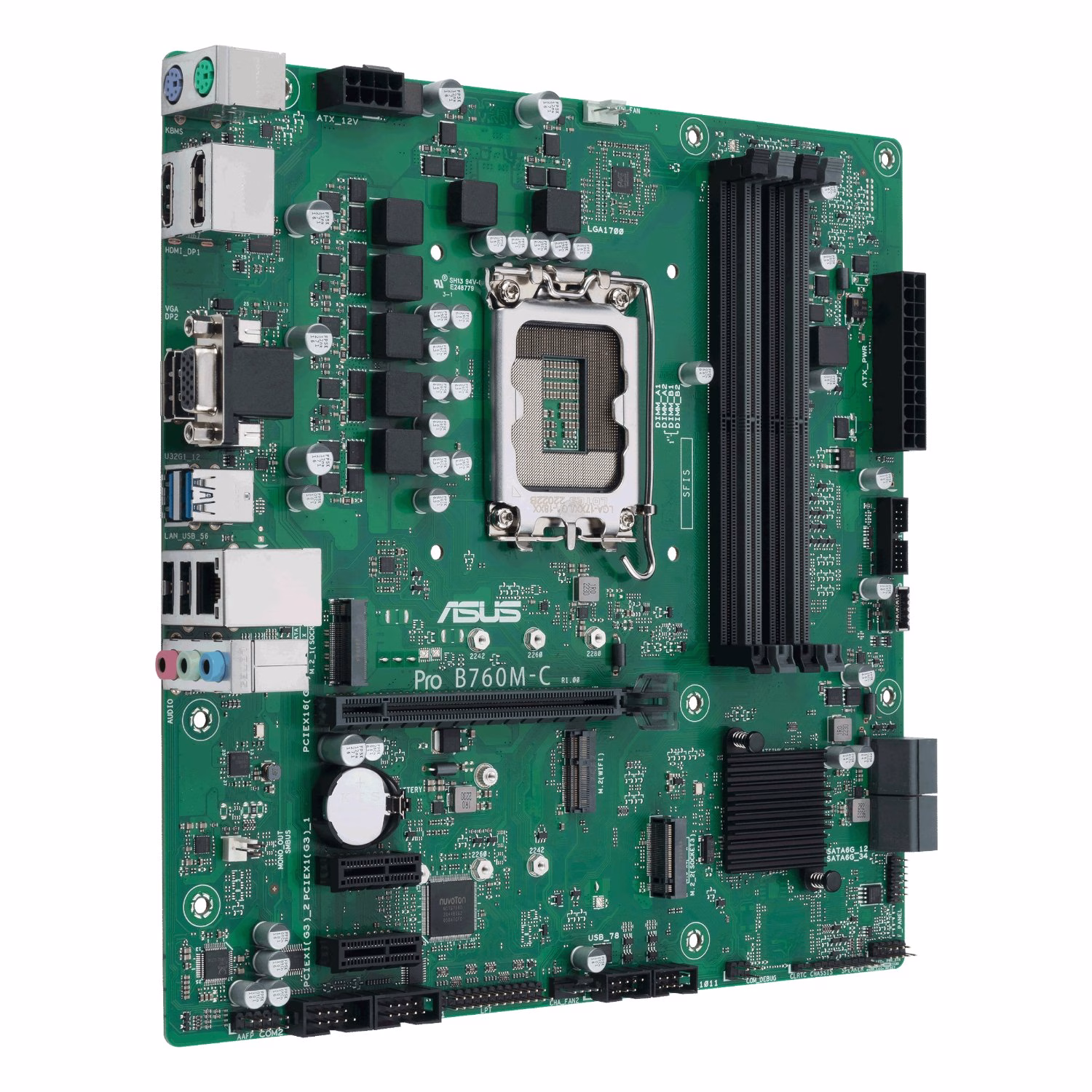

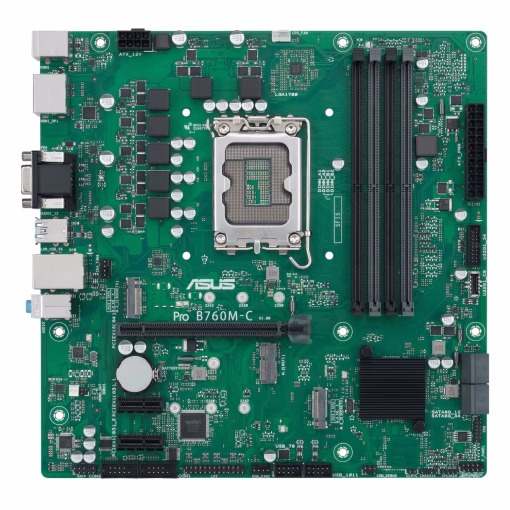

ASUS PRO B760M C CSM LGA 1700 M-ATX Motherboard

The ASUS PRO B760M-C-CSM LGA 1700 mATX Motherboard is a robust and reliable business-class solution designed to meet the demands of modern enterprise computing. Built on the Intel® B760 chipset and supporting 13th and 12th Gen Intel® Core™ processors, this micro-ATX motherboard delivers advanced performance, enhanced durability, and enterprise-grade features. With support for PCIe® 4.0 and DDR5 memory, the board offers lightning-fast data throughput and improved multitasking, making it ideal for performance-driven office builds or commercial applications. ASUS’ long-standing reputation for quality and its Corporate Stable Model (CSM) program ensures long-term availability and consistent support for IT departments.

Designed with reliability in mind, the ASUS PRO B760M-C-CSM features anti-sulfur resistors, corrosion-resistant stainless steel I/O panels, and a moisture-resistant PCB coating to ensure continued operation in challenging environments such as factories or internet cafés. ASUS LANGuard and ESD Guards offer robust protection against power surges and electrostatic discharge, further extending component lifespan and network stability. The board is also tested for 24/7 durability in temperatures up to 45°C and 80% relative humidity—perfect for mission-critical deployments and demanding usage scenarios.

Customization and management are streamlined through the ASUS Control Center Express, an intuitive IT monitoring and maintenance software suite. Built-in features like Q-LED Core, COM debug headers, and event logging tools help administrators diagnose and resolve issues efficiently. The motherboard also includes a DASH LAN header for remote management, allowing IT teams to monitor and manage devices over the network, significantly improving fleet maintenance and deployment time across large-scale environments.

With a versatile feature set that includes two M.2 slots, front USB 3.2 Gen 1 Type-C®, 7.1 surround sound audio, and dual DisplayPort, HDMI®, and VGA outputs, the ASUS PRO B760M-C-CSM is as flexible as it is powerful. The consistent internal connector layout and box-style USB headers ensure easier integration, saving time on training and hardware compatibility. Whether you’re upgrading your business infrastructure or building a new enterprise workstation, this motherboard offers efficiency, security, and longevity, making it a smart investment for professionals and IT departments alike.

FEATURES:

• Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: A self-recovering BIOS
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®

SPECIFICATIONS:

• CPU:
  • Chipset: Intel® B760 Chipset
  • CPU Compatibility: Supports Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  • CPU Socket: LGA1700
• Memory Support:
  • 4 x DIMM slots, up to 192GB total
  • DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
  • Dual-channel architecture
  • Intel® Extreme Memory Profile (XMP) support
• Graphics:
  •  2 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI® port
• Expansion Slots:
• Intel® Core™ Processors (14th & 13th & 12th Gen)*
  • 1 x PCIe 4.0/3.0 x16 slot
• Intel® B760 Chipset
  • 2 x PCIe 3.0 x1 slots
• Storage:
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® Core™ Processors (14th & 13th & 12th Gen)*
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet:
  • 1 x Intel® 1Gb Ethernet
  • ASUS LANGuard
  • Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)*
• USB:
• Rear USB (Total 4 ports)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Back Panel I/O Ports:
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 2 x DisplayPorts
  • 1 x HDMI® port
  • 1 x VGA port
  • 1 x Intel® 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 keyboard (purple) port
  • 1 x PS/2 mouse (green) port
• Internal I/O Connectors:
• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• Operating System: Windows^® 11, Windows^® 10 64-bit
• Form Factor: mATX
• Dimensions: 24.4 cm x 24.4 cm

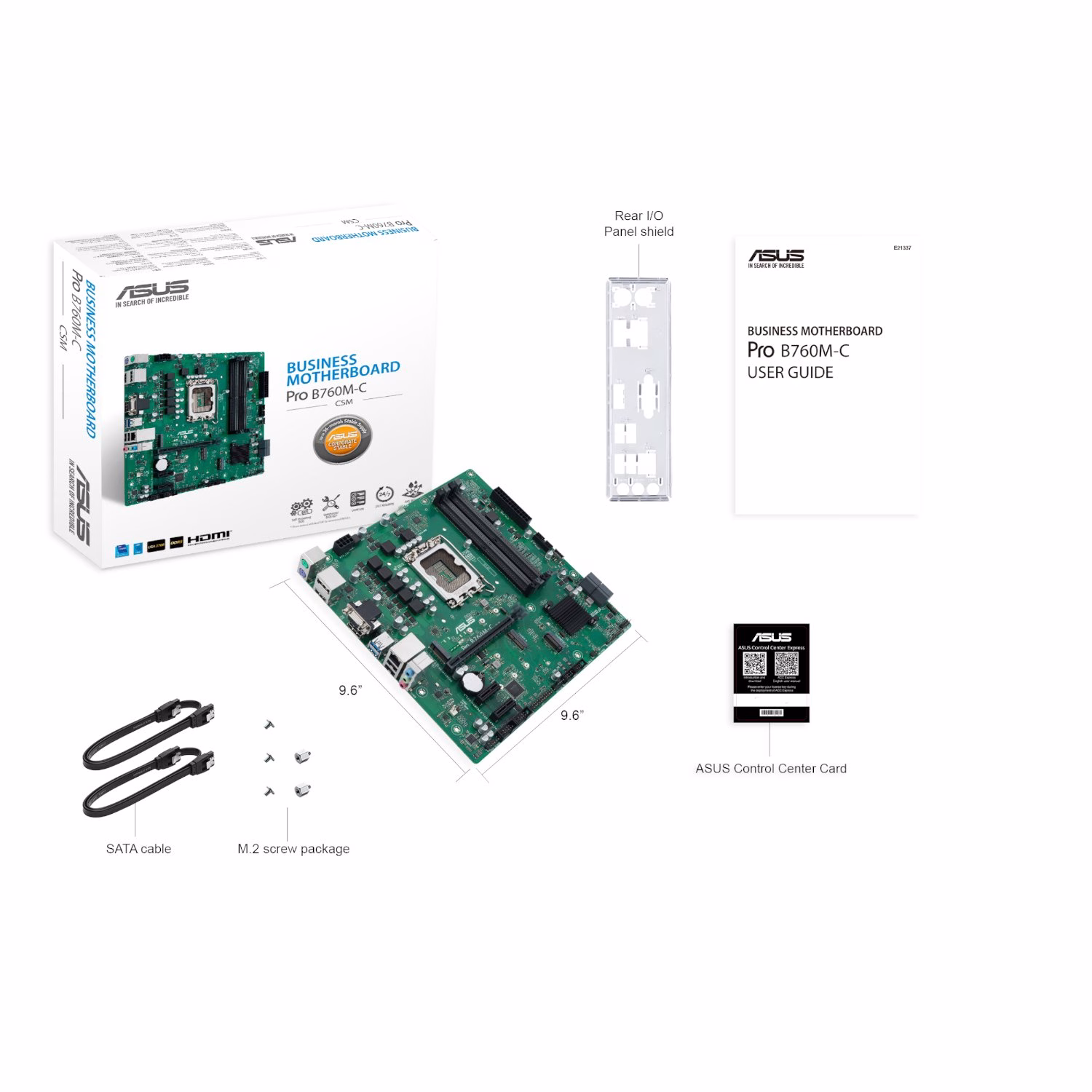

WHAT’S IN THE BOX:

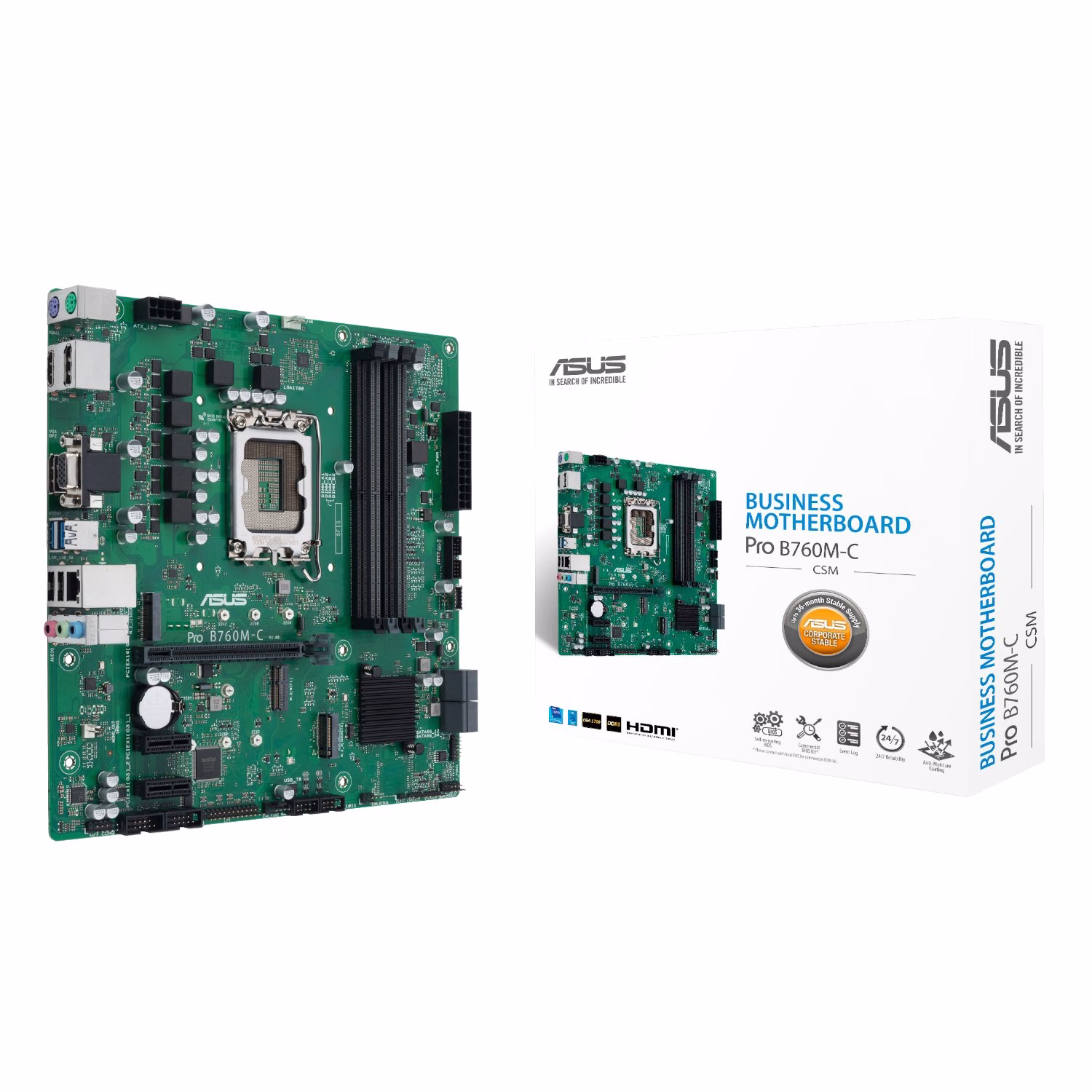

• ASUS PRO B760M C CSM LGA 1700 M-ATX Motherboard x1
• SATA 6Gb/s cables x2
• I/O Shield x1
• Screw package for M.2 SSD x1
• Screw package for M.2 Key E x1
• ACC Express Activation Key Card x1
• User guide x1
