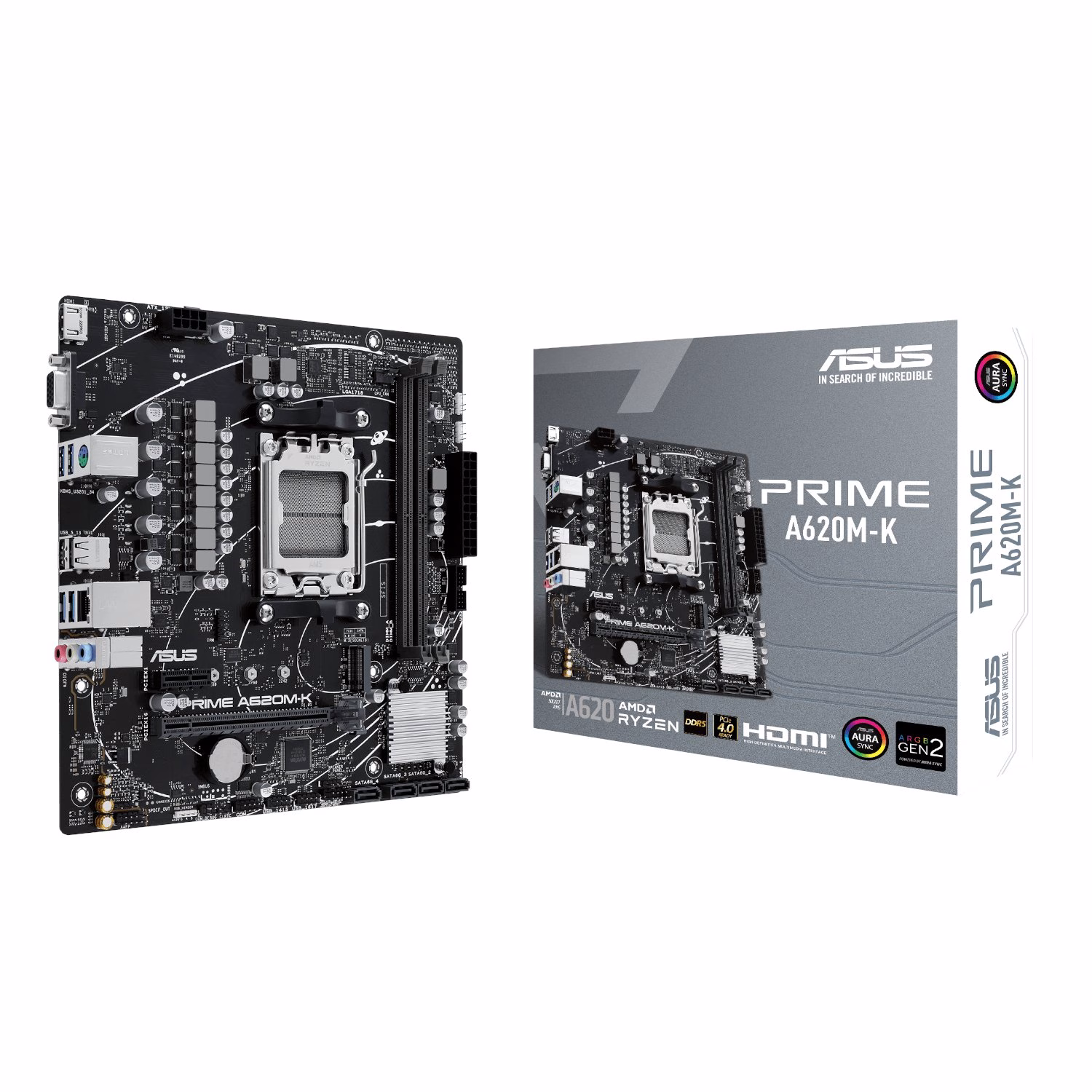

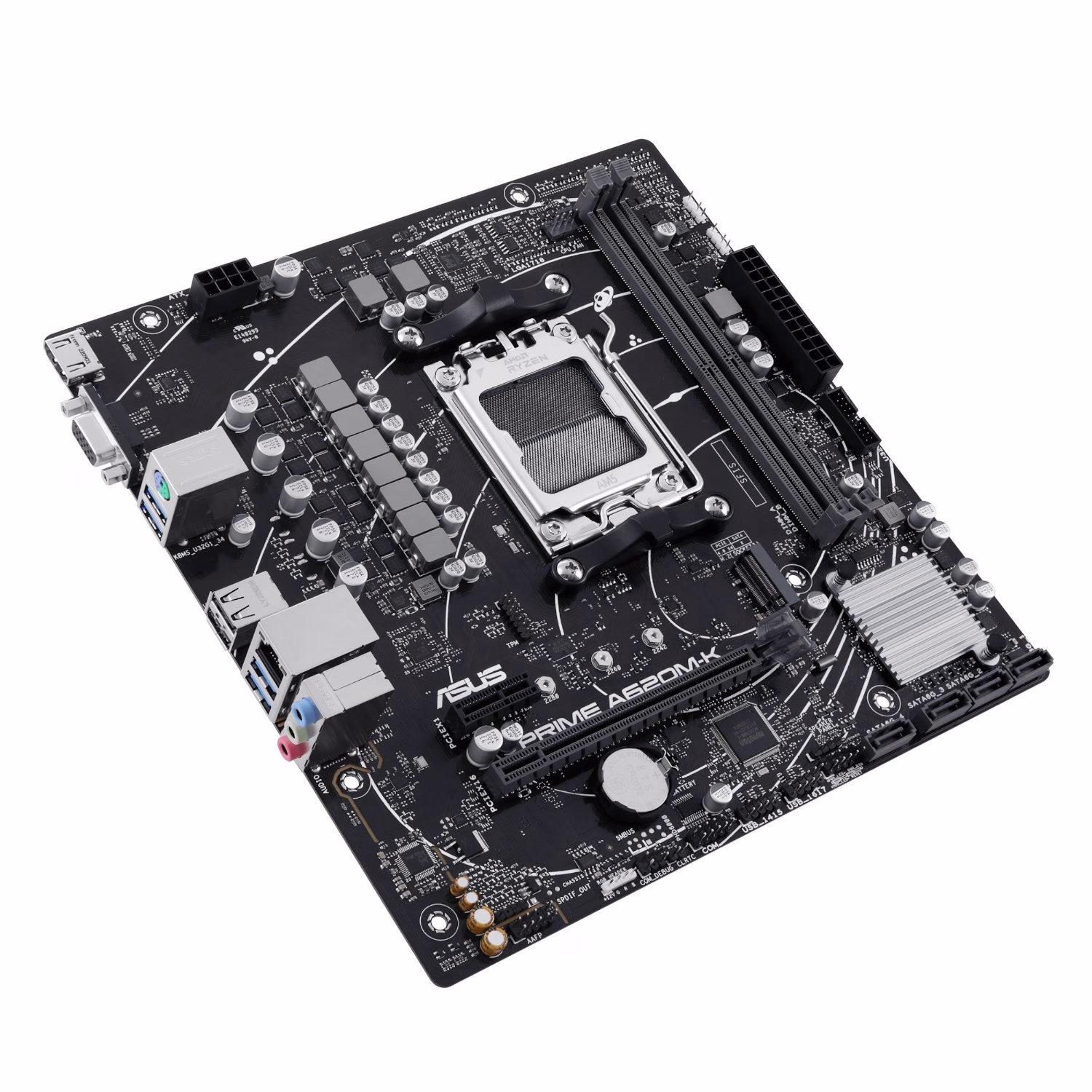

ASUS Prime A620M-K AM5 DDR5 M-ATX Motherboard

Unlock the true potential of AMD’s latest Ryzen™ processors with the ASUS PRIME A620M-K AM5 DDR5 Motherboard. Expertly engineered to support AMD Ryzen™ 9000, 8000, and 7000 Series CPUs, this Micro-ATX powerhouse is designed for everyday users, creators, and first-time system builders who demand dependable performance, versatile connectivity, and user-friendly tuning options.

Powered by the AMD A620 chipset and built around the AM5 socket, the PRIME A620M-K supports DDR5 memory speeds up to 7200+ MT/s (OC) for rapid multitasking and faster application performance. With dual DIMM slots supporting up to 96GB of un-buffered, non-ECC DDR5 memory, it offers forward-looking memory bandwidth and stability for demanding workloads and next-gen gaming.

Comprehensive cooling is ensured through hybrid fan headers, a PCH heatsink, and ASUS’ proprietary Fan Xpert software, allowing you to fine-tune fan speeds based on real-time temperature readings. The two-ounce copper PCB design further aids thermal conductivity and power delivery, ensuring long-term stability even under sustained CPU loads.

Connectivity options are robust for a board of this size. Enjoy ultrafast PCIe 4.0 support for modern GPUs and a 64Gbps M.2 slot for lightning-fast NVMe SSD storage. Additionally, the board offers four SATA 6Gb/s ports and a Realtek 1Gb Ethernet port with ASUS LANGuard protection for secure and stable networking.

USB connectivity is abundant with a total of 12 USB ports—six on the rear I/O including four USB 3.2 Gen 1 Type-A ports, and six more available via internal headers. Display outputs include HDMI and VGA, enabling support for integrated graphics when used with compatible Ryzen APUs.

Designed with aesthetics and practicality in mind, the PRIME A620M-K includes Aura Sync RGB headers and Addressable Gen 2 headers for custom lighting effects, allowing you to personalize your rig with synchronized RGB gear. For crystal-clear communication and immersive entertainment, Realtek 7.1-channel HD audio and Two-Way AI Noise Cancellation ensure pristine voice clarity and premium sound fidelity.

Whether you’re building a productivity workstation or an entry-level gaming PC, the ASUS PRIME A620M-K AM5 DDR5 Motherboard offers the essential performance, cooling, and connectivity you need, all backed by ASUS’ legendary reliability and intuitive software suite.

FEATURES:

• AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
• Support for DDR5 memory up to 7200+MHz in OC mode
• Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
• Comprehensive Cooling: PCH heatsink and Fan Xpert
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips
• Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication
• Audio Shielding with premium audio capacitors and dedicated audio PCB layers

SPECIFICATIONS:

• Socket: AM5
• CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
• Chipset: AMD A620
• Memory: Support DDR5 up to 7200+MT/s (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory with Ryzen™ 9000 & 8000 & 7000 Series Processors, supports AMD Extended Profiles for Overclocking (EXPO™)
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 96
• Expansion Slots: 1 x PCIe 4.0 x16 slot (supports x16 mode) | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | 1 x PCIe 3.0 x1 slot
• SATA 6G: 4
• M.2 Slot: 1
• LAN: 1 x Realtek 1Gb Ethernet, ASUS LANGuard
• Rear USB (Total 6 ports):
  • 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports):
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Back Panel I/O Ports:
  • 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x VGA port
  • 1 x HDMI™ port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 2 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
• Form Factor: M-ATX
• Operating System: Windows® 11, Windows® 10 64-bit

What’s In The Box:

• ASUS Prime A620M-K AM5 DDR5 M-ATX Motherboard – Black x1
• SATA 6Gb/s cables x2
• I/O Shield x1
• Screw package for M.2 SSD x1
• User guide x1
